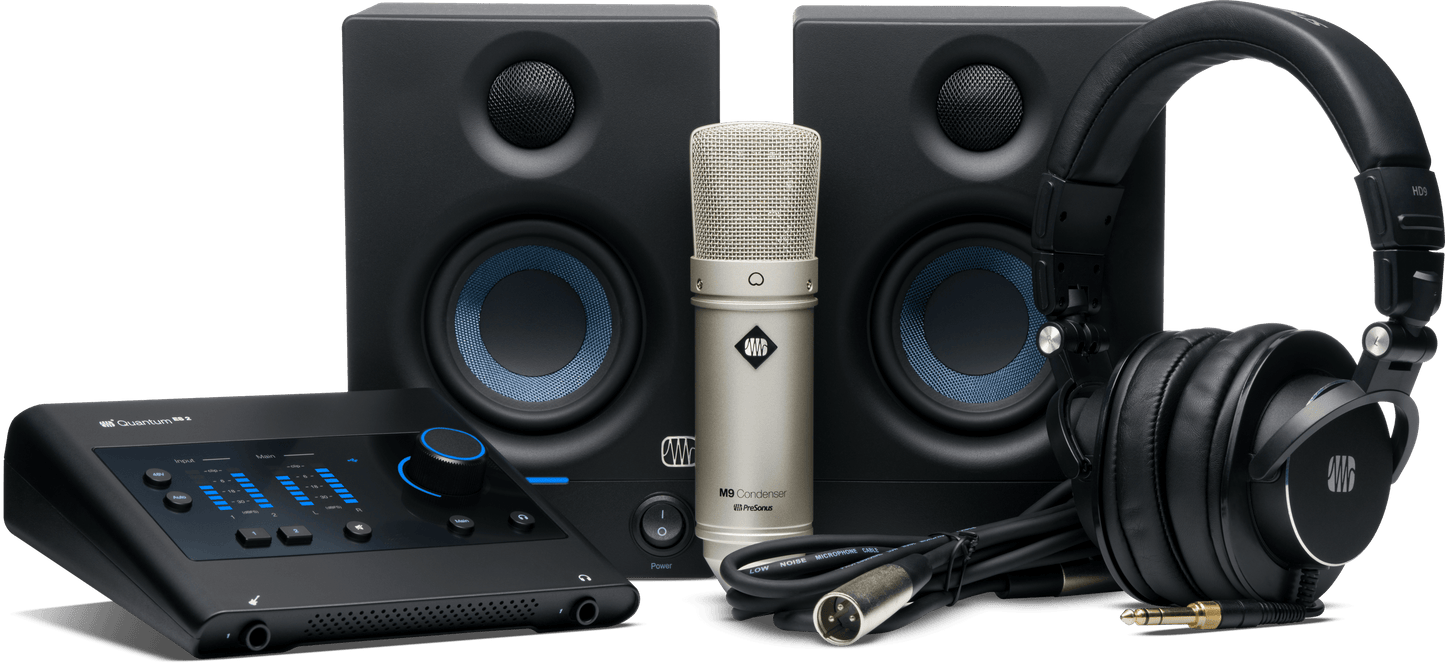

Quantum ES Ultimate Bundle
Quantum ES Ultimate Bundle
Verfügbarkeit für Abholungen konnte nicht geladen werden



Übersicht
DIESES KOMPLETTPAKET HAT ALLES, WAS DU BRAUCHST.
Das PreSonus Quantum ES Ultimate Bundle ist die Komplettlösung für Professionelle Studioaufnahmen. Das PreSonus Quantum ES Ultimate Bundle enthält ein High-End USB-C-Audio-Interface Quantum ES 2 mit brandneuen MAX-HD Mikrofonvorverstärkern, eine Lizenz für Studio One Pro sowie 12 Monate Zugriff auf Studio One Pro+ mit allen Tools, Extras und Erweiterungen, ein Paar leistungsstarke Eris 3.5 Studiomonitore mit erweitertem Bassbereich, einen dynamischen, hochauflösenden HD9 Kopfhörer und ein extrem transparentes M9 Kondensatormikrofon mit Nierencharakteristik und bietet damit alles, was du für professionelle Produktionen benötigst.

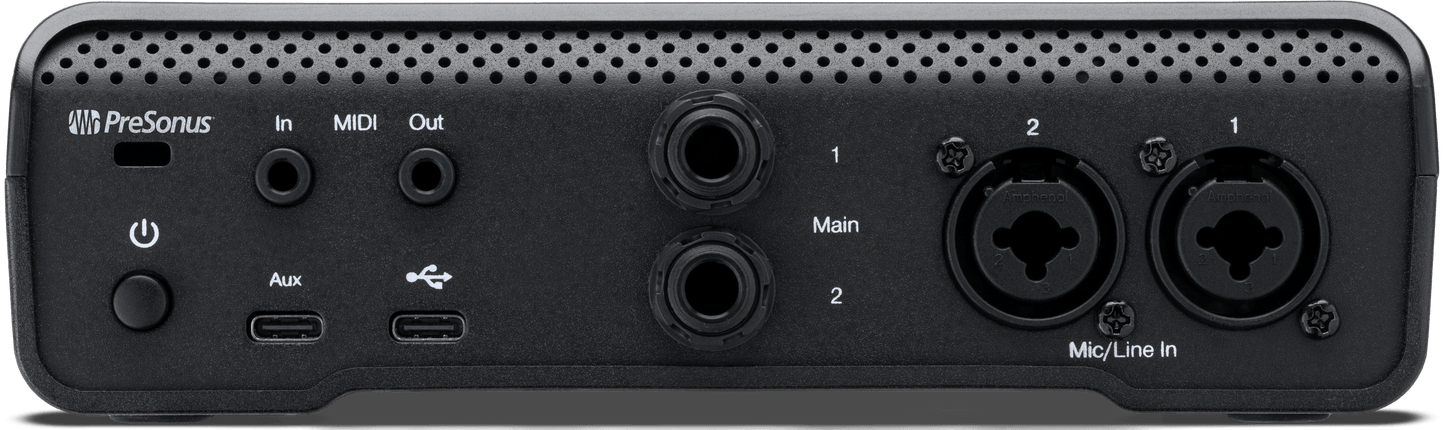

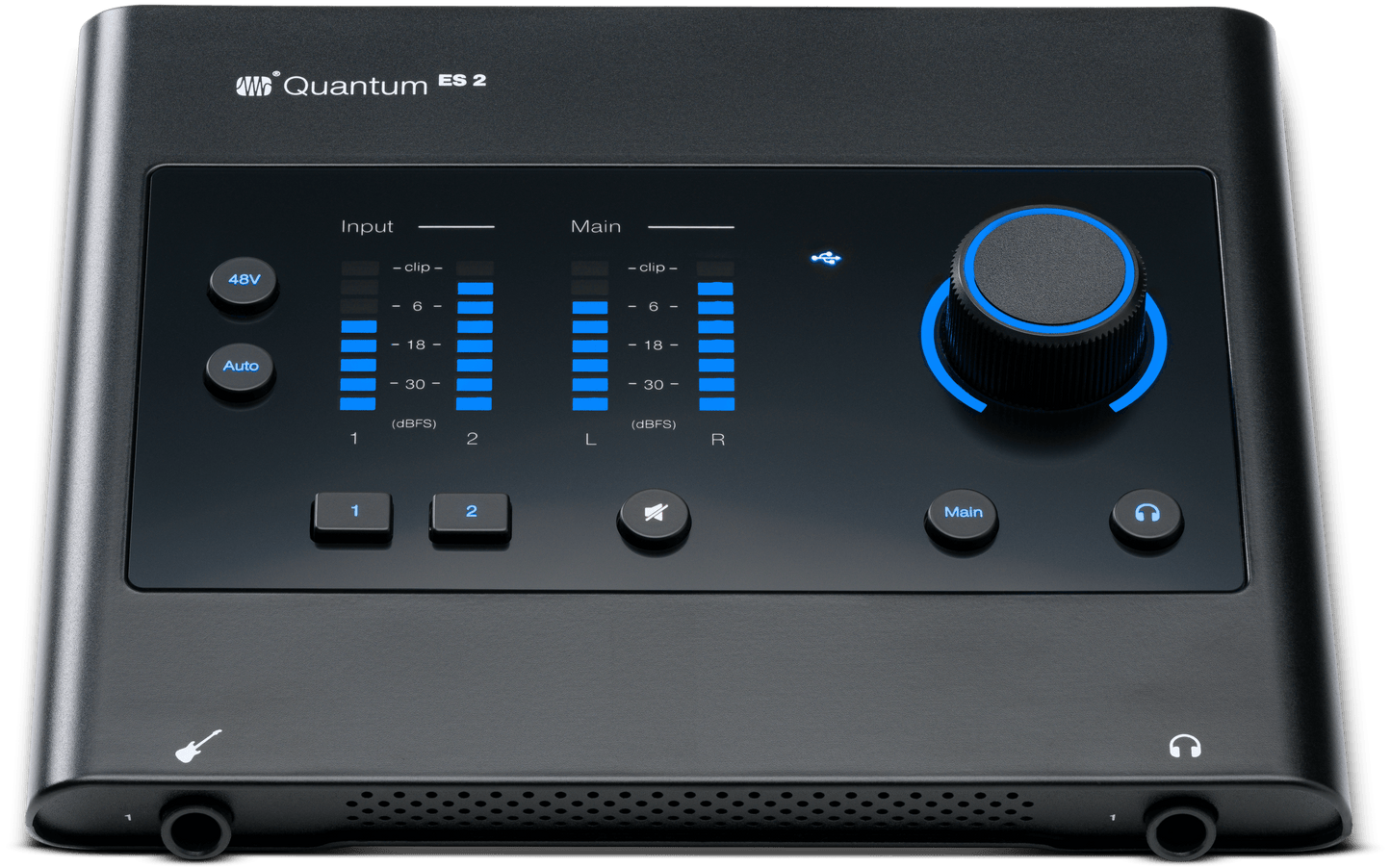

PreSonus Quantum ES 2 USB-C Audio-Interface
· 2x2 24 Bit / 192 kHz USB-C Audio-Interface
· Höchste Signalqualität – Spezialtreiber mit extrem geringer Latenz und rauscharme Wandler
· Brandneue MAX-HD Mikrofonvorverstärker – Unsere von Grund auf neu entwickelten Vorverstärker mit digital gesteuerten Analogeingängen mit einem Gain-Bereich von 75 dB sind das Ergebnis von 30 Jahren Innovation.
· Die frontseitigen Instrumenteneingänge wurden in Kooperation mit Fender® von führenden Branchenexperten speziell für Gitarristen entwickelt.
· Auto Gain – Die Auto-Gain-Funktion sorgt auf Knopfdruck für perfekt ausgesteuerte Aufnahmepegel.
· Universal Control – Praktische App zur umfassenden Steuerung der Funktionen und Überwachung der Pegel auf Mobilgeräten, Tablets und Desktop-PCs
Inklusive Lizenz für Studio One Pro DAW Aufnahmesoftware
· Studio One Pro Softwarelizenz sowie 12 Monate Zugriff auf Studio One Pro+ mit Tools, Extras, Erweiterungen und vielem mehr

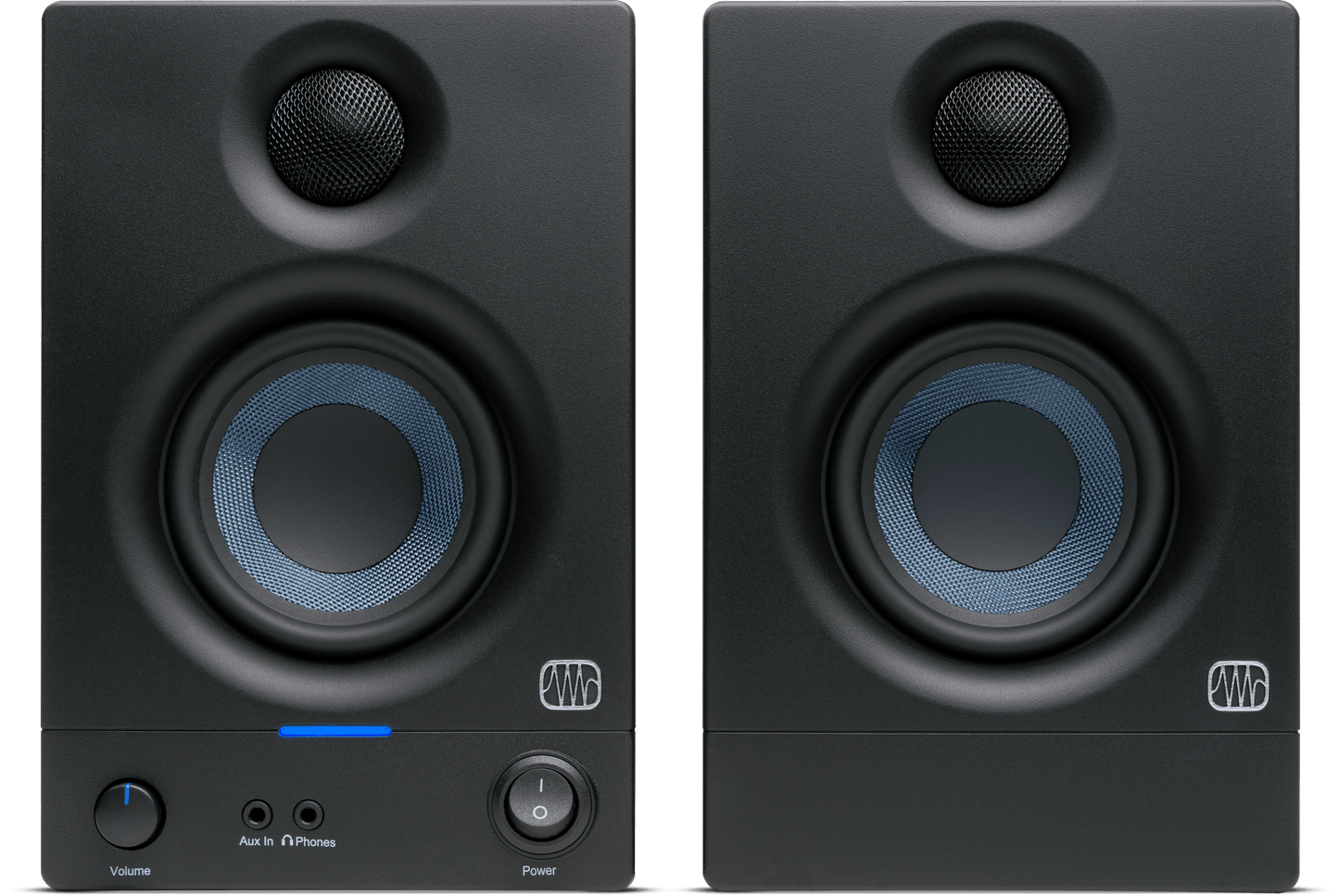

PreSonus Eris 3.5 Studiomonitore
· 3,5" Tieftöner mit Kompositmembran
· 1" Hochtöner mit extrem geringer Masse und Seidenkalotte
· 50 W Class-AB Bi-Amping-Endstufe
· 80 Hz bis 20 kHz Frequenzgang
· 98 dB SPL (Peak @ 1 Meter)
· Acoustic-Tuning-Regler für Höhen und Bässe
· Symmetrische 6,35 mm TRS-Klinkeneingänge, unsymmetrische Stereo-Cinch- und 3,5 mm Klinkeneingänge sowie integrierter Stereo-Kopfhörerverstärker mit 3,5 mm Ausgangsbuchse auf der Vorderseite
· Schutzschaltungen: RF-Abschirmung, Ausgangsstrombegrenzung, Schutzschaltungen gegen Überhitzung und Infraschall sowie Einschaltverzögerung
· Power-Saver-Modus (wird nach 40 Minuten automatisch aktiviert)
· Lautsprecherkabel, Stereokabel 3,5 mm TRS-Klinke auf Cinch sowie 3,5 mm TRS auf 3,5 mm TRS im Lieferumfang

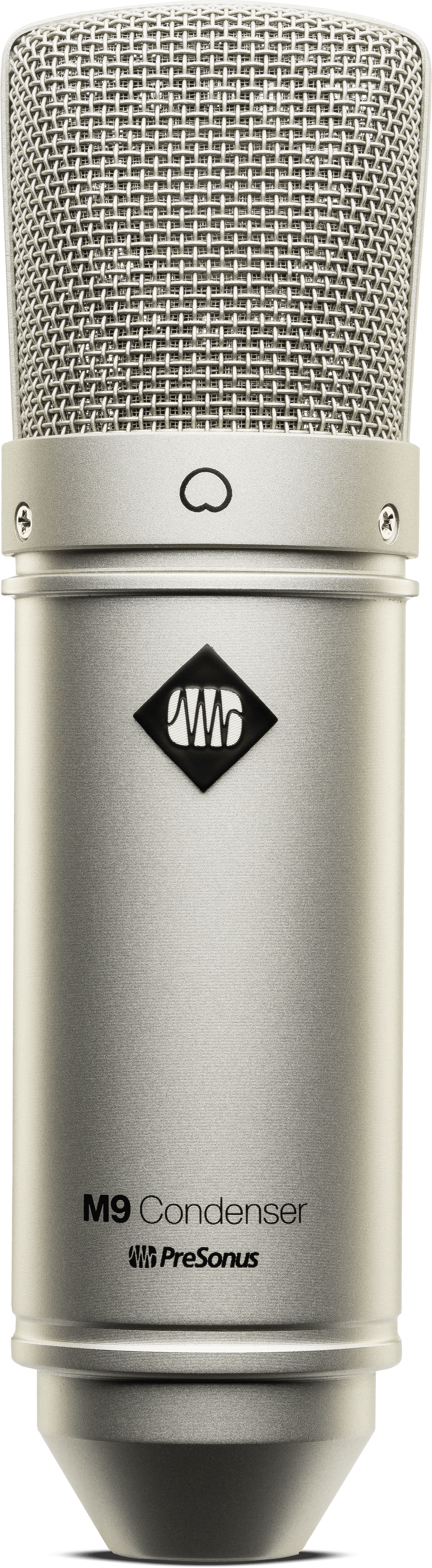

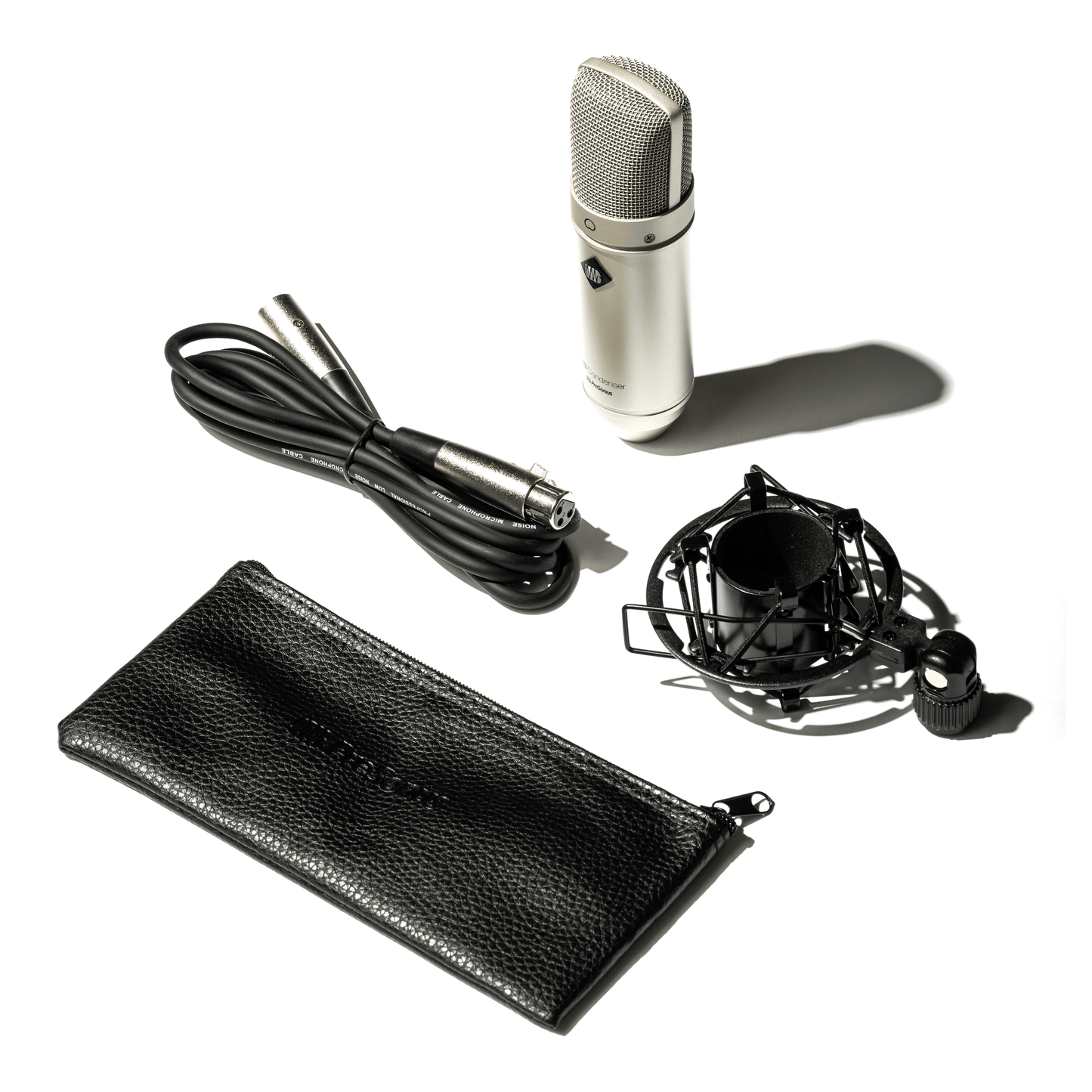

PreSonus M9 Mikrofon
· Extrem transparentes Kondensatormikrofon mit Nierencharakteristik
· Klassischer Mikrofonsound
· Seidenmatte Oberfläche
· Gehäuse aus Zinkdruckguss
· 18 mm Membran aus reinem Aluminium
· 20 Hz – 20 kHz Frequenzgang
· Mikrofonspinne

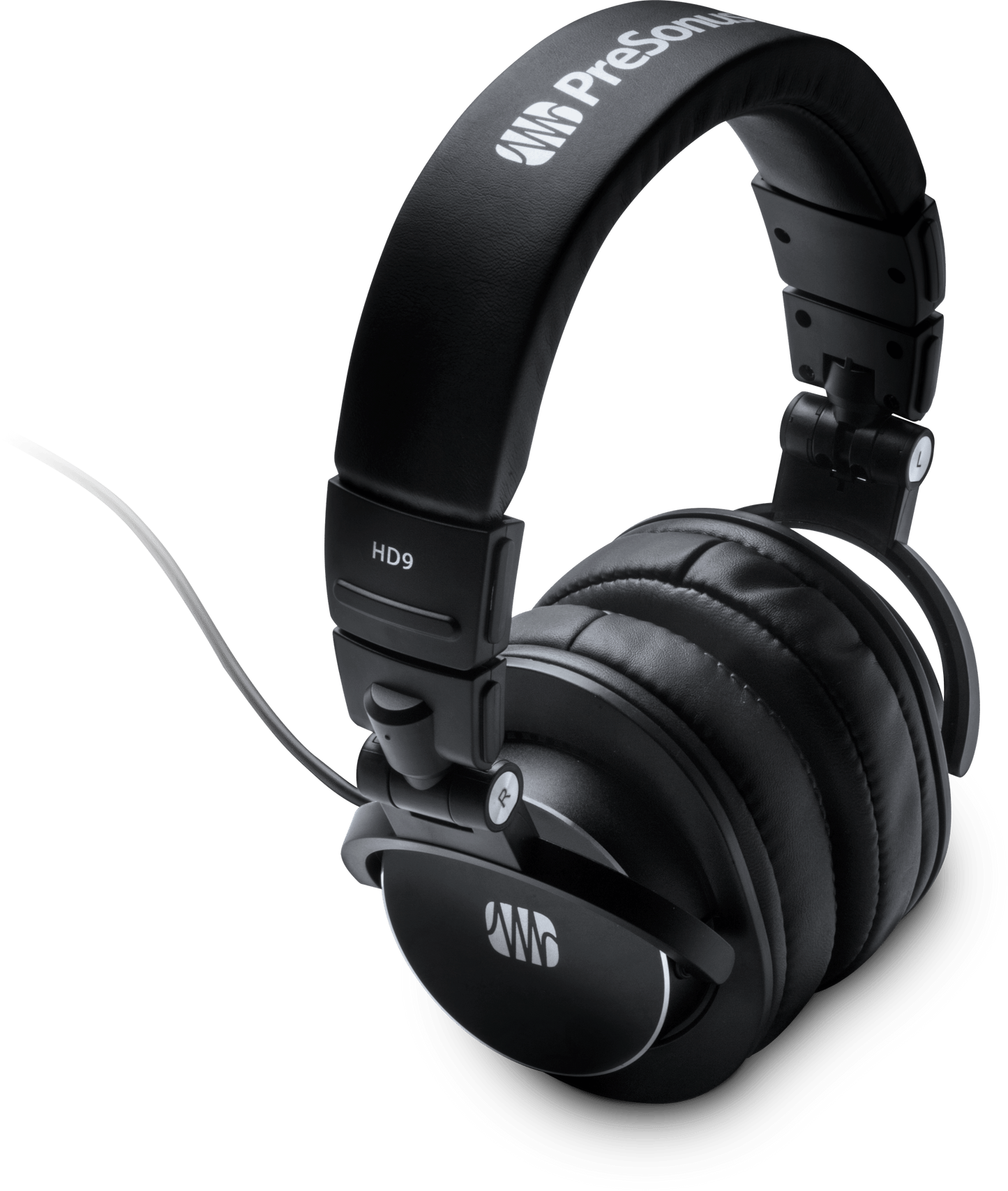

PreSonus HD9 Professioneller Monitoring-Kopfhörer
· Dynamischer Kopfhörer mit hochauflösenden Treibern
· Präzise abgestimmtes Wandlergehäuse
· Erweiterter Bassbereich
· Bequeme und langlebige Ohrpolster
· Leicht und zusammenklappbar
Overview
Merkmale
- PreSonus Quantum ES 2 USB-C Audio-Interface – Hochleistungs-USB-Recording-Interface mit 24 Bit / 192 kHz
- Inklusive Lizenz für Studio One Pro DAW Aufnahmesoftware sowie 12 Monate Zugriff auf Studio One Pro+ mit Tools, Extras, Erweiterungen und vielem mehr
- PreSonus Eris 3.5 Studiomonitore – 3,5" Medien- und Referenzlautsprecher mit erweitertem Bassbereich und Studio-Soundqualität
- PreSonus M9 Mikrofon mit Mikrofonspinne – Extrem transparentes Kondensatormikrofon mit Nierencharakteristik, inklusive Mikrofonspinne
- PreSonus HD9 Professioneller Monitoring-Kopfhörer – Dynamischer Kopfhörer mit hochauflösenden Treibern
Downloads
Das Gesuchte nicht gefunden?
Melde dich bei deinem my.presonus.com-Konto an.
Documentation
Software
Das Gesuchte nicht gefunden?
Melde dich bei deinem my.presonus.com-Konto an.
Spezifikationen
Elektronik
Connectivity
USB-C®
Headphone Jack
One - 1/4" TRS Female Stereo
Input Impedance
10 kΩ
Phantom Power
+48 VDC
Phantom Power Requierments
48 volt
VoltageRequirements
100-240 VAC, 50-60 Hz
Allgemein
Color
Black
Product Name
Quantum ES 2 Ultimate Bundle, Black, UK
Series
Quantum
Hardware
Audio Controls
Volume High Frequency (±6 dB, center 10 kHz, continuously variable) Low Frequency (±6 dB, center 100 Hz, continuously variable)
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
Driver Type
45 mm, Neodymium
HF Transducers
1” Ultra Low Mass, Silk Dome Tweeter
LF Transducers
3.5" Woven Glass Fiber Composite
Microphone Element
18mm pure aluminum diaphragm
Microphone Types
Condenser
Monitor Inputs
1- Stereo 1/8", 2 - Balanced 1/4” TRS, 2 - Unbalanced RCA
Power Amplifier Type
Class AB
Eingaben
Instrument Inputs Dynamic Range
111 dB (A-Weighted, Minimum Gain)
Instrument Inputs Frequency Response
20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
Instrument Inputs Gain Range
75 dB
Instrument Inputs Maximum Level
+15 dBu (Unbalanced, Minimum Gain)
Line Inputs Dynamic Range
114 dB (A-Weighted, Minimum Gain)
Line Inputs Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Line Inputs Gain Range
+/- 10 dB
Line Inputs Impedance
10K Ohms
Line Inputs Maximum Level
+15 dBu (Balanced, Minimum Gain)
Line Inputs Total Harmonic Distortion
0.001% (1 kHz, Minimum Gain)
Microphone Input Connection Type
XLR Female (Combo), Balanced
Microphone Preamp Dynamic Range
113 dB (A-Weighted, Minimum Gain)
Microphone Preamp Equivalent Input Noise
-129 dBu (Maximum Gain, 150 Ohms, 22 kHz BW, A-Weighted)
Microphone Preamp Frequency Response
20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
Microphone Preamp Gain Control Range
75 dB
Microphone Preamp Input Impedance
1600 Ohms
Microphone Preamp Maximum Input Level
+14 dBu (Balanced, Minimum Gain)
Microphone Preamp Total Harmonic Distortion
0.001% (1 kHz, Minimum Gain)
Measurements
Product Depth
11.9” (30.23 cm)
Product Height
16" (406 mm)
Product Width
15.8" (40.2 cm)
Verschiedenes
Power Cable
IEC
Protections
RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 (kHz)
Output
Headphone Outputs Dynamic Range
111 dB (A-Weighted)
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
Headphone Outputs Impedance Working Range
22 Ohms
Headphone Outputs Maximum Output
7.5 dBu (50 Ohms)
Headphone Outputs Total Harmonic Distortion
0.02% (1 kHz)
Main And Line Outputs Dynamic Range
117 dB (A-Weighted)
Main And Line Outputs Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Main And Line Outputs Maximum Level
+15 dBu (Balanced)
Main And Line Outputs Output Impedance
51 Ohms
Main And Line Outputs Total Harmonic Distortion
0.001% (1 kHz, +4 dBu)
Main Outputs Connection Type
1/4" TRS Female
Leistung
Digital Audio Bit Depth
24-bit
Digital Audio Dynamic Range
120 dB
Headphone Frequency Response
10 Hz to 26 kHz
Headphone Maximum Power
1800 mW
Headphone Rated Impedance
40Ω
Headphone Sensitivity
98 dB SPL (1 mW)
Microphone Frequency Response
20 Hz to 20 kHz
Microphone Sensitivity
-38dB±2dB (0dB=1V/Pa at 1kHz)
Peak SPL
98 dB (@ 1 meter)
Polar Patern
Cardioid
Lautsprecher
Crossover Frequency
2.8 kHz
Spezifikationen
Elektronik
Connectivity
USB-C®
Headphone Jack
One - 1/4" TRS Female Stereo
Input Impedance
10 kΩ
Phantom Power
+48 VDC
Phantom Power Requierments
48 volt
VoltageRequirements
100-240 VAC, 50-60 Hz
Allgemein
Color
Black
Product Name
Quantum ES 2 Ultimate Bundle, Black, EU
Series
Quantum
Hardware
Audio Controls
Volume High Frequency (±6 dB, center 10 kHz, continuously variable) Low Frequency (±6 dB, center 100 Hz, continuously variable)
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
Driver Type
45 mm, Neodymium
HF Transducers
1” Ultra Low Mass, Silk Dome Tweeter
LF Transducers
3.5" Woven Glass Fiber Composite
Microphone Element
18mm pure aluminum diaphragm
Microphone Types
Condenser
Monitor Inputs
1- Stereo 1/8", 2 - Balanced 1/4” TRS, 2 - Unbalanced RCA
Power Amplifier Type
Class AB
Eingaben
Instrument Inputs Dynamic Range
111 dB (A-Weighted, Minimum Gain)
Instrument Inputs Frequency Response
20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
Instrument Inputs Gain Range
75 dB
Instrument Inputs Maximum Level
+15 dBu (Unbalanced, Minimum Gain)
Line Inputs Dynamic Range
114 dB (A-Weighted, Minimum Gain)
Line Inputs Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Line Inputs Gain Range
+/- 10 dB
Line Inputs Impedance
10K Ohms
Line Inputs Maximum Level
+15 dBu (Balanced, Minimum Gain)
Line Inputs Total Harmonic Distortion
0.001% (1 kHz, Minimum Gain)
Microphone Input Connection Type
XLR Female (Combo), Balanced
Microphone Preamp Dynamic Range
113 dB (A-Weighted, Minimum Gain)
Microphone Preamp Equivalent Input Noise
-129 dBu (Maximum Gain, 150 Ohms, 22 kHz BW, A-Weighted)
Microphone Preamp Frequency Response
20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
Microphone Preamp Gain Control Range
75 dB
Microphone Preamp Input Impedance
1600 Ohms
Microphone Preamp Maximum Input Level
+14 dBu (Balanced, Minimum Gain)
Microphone Preamp Total Harmonic Distortion
0.001% (1 kHz, Minimum Gain)
Measurements
Product Depth
11.9” (30.23 cm)
Product Height
16" (406 mm)
Product Width
15.8" (40.2 cm)
Verschiedenes
Power Cable
IEC
Protections
RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 (kHz)
Output
Headphone Outputs Dynamic Range
111 dB (A-Weighted)
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
Headphone Outputs Impedance Working Range
22 Ohms
Headphone Outputs Maximum Output
7.5 dBu (50 Ohms)
Headphone Outputs Total Harmonic Distortion
0.02% (1 kHz)
Main And Line Outputs Dynamic Range
117 dB (A-Weighted)
Main And Line Outputs Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Main And Line Outputs Maximum Level
+15 dBu (Balanced)
Main And Line Outputs Output Impedance
51 Ohms
Main And Line Outputs Total Harmonic Distortion
0.001% (1 kHz, +4 dBu)
Main Outputs Connection Type
1/4" TRS Female
Leistung
Digital Audio Bit Depth
24-bit
Digital Audio Dynamic Range
120 dB
Headphone Frequency Response
10 Hz to 26 kHz
Headphone Maximum Power
1800 mW
Headphone Rated Impedance
40Ω
Headphone Sensitivity
98 dB SPL (1 mW)
Microphone Frequency Response
20 Hz to 20 kHz
Microphone Sensitivity
-38dB±2dB (0dB=1V/Pa at 1kHz)
Peak SPL
98 dB (@ 1 meter)
Polar Patern
Cardioid
Lautsprecher
Crossover Frequency
2.8 kHz
